View from behind the glovebox area showing the four bolts that attach the long trim strip. Also seen in the photo are two of the air vents, which are also attached from the rear with screws.
Several aftermarket companies offer trim kits to upgrade or change the factory interior strips and bezels. Products offered include vinyl overlays as well as moulded plastic stick-on pieces for selected trim parts. The trim pieces can also be removed/masked and painted any color. See Dash Trim Kits.
5FN60RK5AG 5FZ23VK9AF 5FZ23LAZAF 5FZ23LAZAG 5FZ23LAZAD 5FZ23WL8AF 5FZ23WL5AG 5FZ23WL8AF 5FZ23WL8AF
5HK51WL8AB 5FZ23WL8AF
5HK51WL8AB 5HK51WL8AC 5FZ23XDVAF
5HK51XDVAA 5HK51XDVAC 5FZ23XDVAF
5HK51XDVAB 5HK51XDVAC 5HK51XDVAC 5FZ23XTMAF
5HK51XTMAB 5FZ23XTMAE
5HK51XTMAB 5FZ23XTMAC
1. Remove the upper steering wheel trim bezel (see # 4 above, "Cluster bezel trim").
2. Remove the two screws at the inside top of the lower trim bezel (left photo above).
3. Remove the plastic fuse cover underneath the left side of the steering column opening cover.
4. Remove the side Phillips screw and the two 10mm bolts underneath the bezel trim (upper right photo).
5. Pull the steering column opening cover rearward to disengage the three snap clips (one outboard and two inboard) that secure it to the receptacles in the instrument panel. The clips are very snug, requiring a fairly strong pull on each side. When replacing the cover, be certain to align the two plastic guide pins as well as the spring clips before pushing it back into place.
Front and Rear view of steering wheel opening cover
5EY40LAZAG $ 116.00 5EY40RK5AG $ 99.20 5EY40WL5AG $ 177.00 5EY40LAZAG $ 116.03 5EY40RK5AG $ 99.20 5EY40WL5AG $ 177.00 5EY40LAZAG $ 116.03 5EY40XT5AG $ 127.00 5EY40WL5AG $ 177.00 5EY40XDVAG 5EY40WL5AG $ 177.00 5EY40XDVAG $184.00 5EY40XT5AG $ 127.00
5EY40WL5AG $ 177.00 5134561AA $ 202.00 5135817AA $ 137.00 5134561AA $ 202.00 5019799AE 5134563AA $ 144.00 $ 239.00 5014055AG 5134561AA $ 106.00 $ 202.00 5019799AE 5134563AA $ 144.00 $ 239.00 5134562AA $ 195.00 5134557AA $ 112.00 5083067AA 05134558AA $ 137.00 $ 184.00 5134557AA $ 112.00 55116483AF $ 165.00 $ 245.00 55116280AG 5134557AA $ 102.00 $ 112.00 55116483AF 05134559AA $ 229.00 $ 245.00 5134560AA $ 140.00 55116911AB $ 94.85
1. Radio / air vent bezel
The radio bezel is a one-piece unit that includes the center air vent grilles. The bezel is held in place with 4 spring clips. With a wide flat tool (a 3" plastic spackle tool works great), gently pry on each vertical side and carefully pull the bezel out a little at a time until it is free. The red areas in the center picture are the felt-lined receptacles that the bezel spring clips fit in to, which shows the general area of where to pry when removing the bezel.
Radio bezels
Year
Color
Part #
MSRP
1999
Black (Laredo)
55116277AB
$ 67.85
1999
Woodgrain, Desert Zabrano (Limited)
55116256AB
$ 105.00
2000
Black (Laredo)
55116277AB
$ 67.85
2000-2004
Woodgrain, Spartan Burl (Limited)
55116479AB
$ 147.00
2001-2004
Aluminum, brushed (Laredo)
55116506AA
$ 157.00
2002-2004
Woodgrain, Redwood (Overland)
55116519AB
superseded by:$352.00
2004
Silver, Freedom Edition
55116893AA
$474.00
2004
Silver, Columbia Edition
55116982AA
$113.00
NOTE: Prices listed are for reference purposes only and may vary by dealer. Prices are current as of February 2010. Parts are not available from this web site.
2. Instrument panel trim strips
The short left trim piece can be removed from the front. It is held on with two spring clips and can be pried out easily with a small trim stick or similar tool.
The long right strip above the glovebox is attached from the back of the instrument panel with four 10mm bolts and is much more difficult to remove. Due to safety considerations in the event of an accident, it is securely bolted on from the back. This trim piece is laminated to a piece of thick metal and weighs more than a half pound. To remove it requires the disassembly and removal of the entire instrument panel, including the cluster, radio, A/C unit, glovebox, ashtray and so on. Although not as difficult as it sounds, it could take 2-3 hours to disassemble the dash and put it all back together.
New molded dash trim appliques are now available that will fit nicely over the front factory trim pieces without removing them (See the Aftermarket Dash kits page). Owners who want to upgrade to the real wood Overland trim strips will have to remove their existing strips as no aftermarket trim kits match the Redwood design.
Left and Right instrument panel trim pieces
Year
Color
Part #
MSRP
1999 (Left)
Woodgrain, Desert Zabrano
55116405AA
$ 23.10
1999 (Right)
Woodgrain, Desert Zabrano
(discontinued)55116408AB
$ 113.73
2000-2004 (Left)
Woodgrain, Spartan Burl
55116475AA
$ 34.70
2000-2004 (Right)
Woodgrain, Spartan Burl
55116482AA
$ 76.95
2001-2004 (Left)
Aluminum, brushed (Laredo)
55116497AA
$ 34.35
2001-2004 (Right)
Aluminum, brushed (Laredo)
55116509AA
$ 76.95
2002-2004 (Left)
Woodgrain, Redwood (Overland)
55116499AA
$72.00
2002-2004 (Right)
Woodgrain, Redwood (Overland)
55116511AB
$282.00
2002-2004 (Left)
Aluminum, brushed (Freedom Edition)
55116889AA
$34.60
2002-2004 (Right)
Aluminum, brushed (Freedom Edition)
55116895AA
$75.80
2002-2004 (Left)
Aluminum, brushed (Columbia Edition)
55116980AA
$34.60
2002-2004 (Right)
Aluminum, brushed (Columbia Edition)
55116981AA
$69.20
NOTE: Prices listed are for reference purposes only and may vary by dealer. Prices are current as of February 2010. Parts are not available from this web site.
2002 Limited with factory Burlwood trim

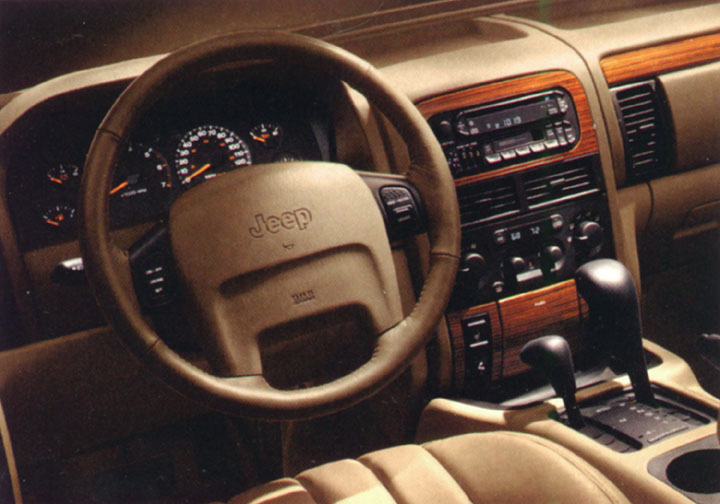

1999 Limiteds with Desert Zabrano factory woodgrain accents.
3. Front and rear door trim strips
The Spartan Burl door trim molding strips are not available separately as replacement parts, the entire door panel must be purchased. The Redwood strips used on all Overland models, however, can be purchased individually and installed into other WJ door panels. Since the matching dash strips and the radio bezel for the Overland are also available, Limited owners can order all seven parts and have the real redwood interior. The woodgrain Overland steering wheel, although very expensive, is also available.
WJ Door panel strips 2002-2004 Overland
Location
Description
Part Number
MSRP
Left front
Woodgrain, Redwood
5GY85AAAAA
$359.00
Left rear
Woodgrain, Redwood
5GY87AAAAA
$374.00
Right front
Woodgrain, Redwood
5GY86AAAAA
$364.00
Right rear
Woodgrain, Redwood
5GY88AAAAA
$374.00
NOTE: Prices listed are for reference purposes only and may vary by dealer. Prices are current as of February 2010. Parts are not available from this web site.
4. Cluster bezel
trim
The cluster bezel trim piece is held in place by 4 spring clips, one at each corner, and pulls straight out. On the left side, you can reach your thumb behind the bezel at the tilt wheel lever cut-out opening and pull forward. If so equipped, you'll need to unhook the Adjustable Pedals harness from the back of the bezel.
. The 2002-2003 cluster bezels, with or without the built-in switch can be ordered and easily installed on 1999-2001 WJ models if a color change is desired. Adding a bezel with the switch to a WJ without Adjustable Pedals allows one to conveniently control a selected accessory of their choice. The switch is momentary-on but could probably be modified to work "on-off". The "Pedal Adjust" writing could be painted over and new lettering added for a very professional looking installation.
Cluster bezels
Color
1999
2000
2001
2002
2003
2004
Camel(tan)
5FN60RK5AB
5FN60RK5AE
superseded by:----
----
----
----
Dark Suede
5FZ23VK9AB
superseded by:5FZ23VK9AD
----
----
----
----
Agate
5FZ23LAZAB
superseded by:5FZ23LAZAE
superseded by:5FZ23LAZAD
superseded by:----
----
----
Taupe (dark brown)
5FZ23WL8AB
superseded by:5FZ23WL5AE
superseded by:5FZ23WL8AD
superseded by:5FZ23WL8AD
superseded by:
5HK51WL8AA
(with pedal switch)superseded by:
(with pedal switch)5FZ23WL8AE
superseded by:
(with pedal switch)5FZ23WL8AF
(with pedal switch)
Dark Slate Gray
----
----
----
5FZ23XDVAD
superseded by:
(with pedal switch)
superseded by:
(with pedal switch)5FZ23XDVAE
superseded by:
(with pedal switch)
superseded by:
(with pedal switch)5FZ23XDVAF
(with pedal switch)
Sandstone
----
----
----
5FZ23XTMAD
superseded by:
5HK51XTMAA
superseded by:
(with pedal switch)5FZ23XTMAE
superseded by:
(with pedal switch)5FZ23XTMAF
(with pedal switch)
5. Steering column opening cover
The lower steering column opening cover is held in place by three screws, two bolts and three spring clips:
Steering wheel opening covers
Year
Color
Part #
MSRP
1999
Agate
5EY40LAZAB
superseded by:
(discontinued)$ 76.60
1999
Camel, Medium
5EY40RK5AB
superseded by:$ 80.85
1999
Taupe
5EY40WL5AB
superseded by:$ 61.25
2000
Agate
5EY40LAZAE
superseded by:
(discontinued)$ 99.70
2000
Camel
5EY40RK5AE
superseded by:$ 93.60
2000
Taupe
5EY40WL5AE
superseded by:$ 85.75
2001
Agate
5EY40LAZAF
superseded by:
(discontinued)$ 68.70
2001
Black
5EY40XT5AF
superseded by:$ 89.20
2001
Taupe
5EY40WL5AF
superseded by:$ 79.95
2002
Quartz
5EY40XDVAE
superseded by:$ 184.00
2002
Black
5EY40XT5AG
$ 127.00
2002
Taupe
5EY40WL5AE
superseded by:$ 85.75
2003
Quartz
5EY40XDVAF
superseded by:$ 114.00
2003
Black
5EY40XT5AF
superseded by:$ 99.7
2003
Taupe
5EY40WL5AF
superseded by:$ 79.95
2004
Quartz
5EY40XDVAG
$ 184.00
2004
Black
5EY40XT5AG
$ 127.00
2004
Taupe
5EY40WL5AG
$ 177.00
NOTE: Prices listed are for reference purposes only and may vary by dealer. Prices are current as of February 2010. Parts are not available from this web site.
6. Lower center bezel / ashtray
The lower center bezel assembly is held in place by strong snap clips near each corner which can be gently pried out with a plastic putty knife or trim stick. Tip: The bezel will come out much easier if you remove the plastic tray below it. Once you have the bezel out a few inches the wiring harnesses for the power outlets, ashtray light and heated seats can be unhooked and the bezel removed. The heated seat buttons can be easily unscrewed from the back for installation into a new or different bezel.
Shown above left is the black lower center bezel, front and back (with power outlet and seat switches not installed). Above right, the new style with a cubby hole instead of the ashtray that debuted on the 2003 models. The bezel is attached to the instrument panel with four spring clips.
Some owners have found unique uses for their center console ashtrays, including this clever installation featuring switches mounted for overhead Hela lights.
Lower center bezels With heated seats
Year
Color
Part #
MSRP
1999 (Laredo)
Black
5014055AA
superseded by:$ 74.00
1999 (Limited)
Woodgrain (Desert Zabrano)
5014054AA
superseded by:$ 118.00
2000 (Laredo)
Black
5014055AB
superseded by:$ 106.00
2000 (Limited)
Woodgrain, Spartan Burl
5019799AA
superseded by:
superseded by:$ 127.00
2001 (Laredo)
Black
5014055AC
superseded by:
superseded by:$ 99.35
2001 (Limited)
Woodgrain, Spartan Burl
5019799AA
superseded by:
superseded by:$ 127.00
2002 (All)
Black
5014055AH
superseded by:$ 102.00
2003-2004 (All, no ashtray)
Black
5096015AB
$90.70
Without heated seats
Year
Color
Part #
MSRP
1999 (Laredo)
Black
55116280AA
superseded by:$ 77.50
1999 (Limited)
Woodgrain (Desert Zabrano)
55116263AA
superseded by:
superseded by:$ 129.00
2000 (Laredo)
Black
55116280AB
superseded by:$ 113.00
2000 (Limited)
Woodgrain, Spartan Burl
55116483AA
superseded by:
superseded by:5134559AA$144.00
2001 (Laredo)
Black
55116280AC
superseded by:
superseded by:$ 102.00
2001 (Limited)
Woodgrain, Spartan Burl
55116483AB
superseded by:
superseded by:$ 165.00
2002 (All)
Black
55116280AH
superseded by:$ 96.60
2003-2004 (All, no ashtray)
Black
55116911AA
superseded by:$ 65.70
Heated seat switches
1999-2004
Black (Left)
56033019AB
$ 45.50
1999-2004
Black (Right)
56033017AB
$ 45.50
NOTE: Prices listed are for reference purposes only and may vary by dealer. Prices are current as of February 2010. Parts are not available from this web site.
